1-30L BIB Aseptic Filler

BIB Aseptic Filler mainly used in the food and beverage industry for filling liquids into 1-30L containers. The bag has a spout or valve for dispensing the liquid. "Bag-in-Box" packaging consists of a flexible bag housed within a corrugated cardboard box, are commonly used for products like wine, juices, syrups, dairy products, and other liquid foods.Designed for filling sterile products, often equipped with sterilization machine and aseptic bag to extended shelf life without refrigeration. With steam chamber and aseptic system.

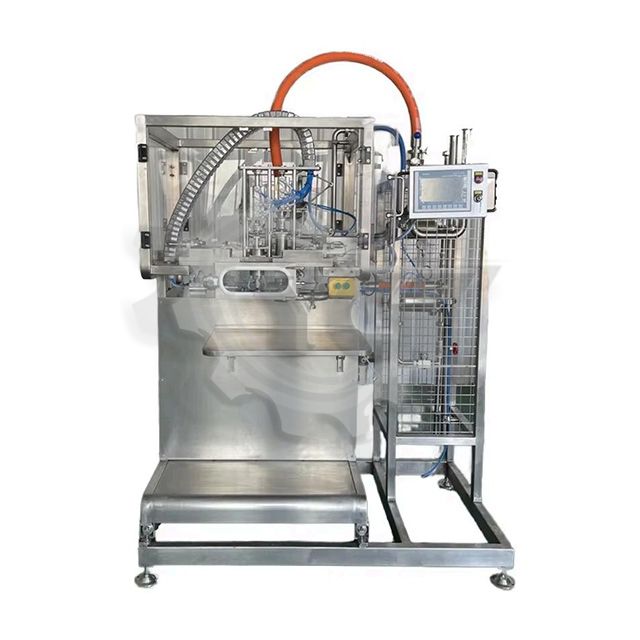

Single head BIB Aseptic Filler

1.The BIB Aseptic Filler essential filling principle remains unchanged, and continuous steam sterilization is achieved through the sterile warehouse to ensure aseptic filling.

2.The BIB Aseptic Filler use of single-bag packaging materials requires manual bag supply to complete the entire  process of filling, sealing, and output.

3.BIB Aseptic Filler can withstand the frequency of pouch filling. The unique cavity   design makes it easy to quickly repair filling parts, and enables convenient switching between online production and CIP.

4.The BIB Aseptic Filler whole set of actions only takes 4 seconds, which is more efficient.

Double-head BIB Aseptic Filler

1.The BIB Aseptic Filler extra filling head speeds up liquid filling to a great extent.

2.BIB Aseptic Filler both heads work simultaneously to prevent material backflow.

Fully automatic continuous aseptic filling machine

1.BIB Aseptic Filler occupies a large area, is suitable for large-scale production, and can maintain precise aseptic filling in high-speed operations.

2.Using continuous bag packaging materials, continuous filling is achieved through automatic bag feeding structure.

3.BIB Aseptic Filler has a high degree of automation and can automatically complete the entire process of bag delivery, filling, sealing, bagging and output, etc., improving production efficiency and reducing labor intensity.

>> Production Process

1. When the BIB Aseptic Filler is in running, insert the bag mouth into the filling slot to ensure that the bag mouth is in place.

2. The initial position of the left and right sliding parts is on the right. During BIB Aseptic Filler operation, the lifting cylinder is pressed down to the clamping cap, the capping head clamp the cap, then pull out the cap.

3. Slide cylinder to the left position, press the lifting cylinder down to the filling position, put the filling head in position and insert it into the bag mouth for vacuuming and filling.

4. After filling, the mechanism rises and moves to the right, and then press down to completely press the cap into the mouth of the bag.

>> Configuration

Beverages: Wine, fruit juices, water, tea, soft drinks.

Dairy: Milk, cream, and liquid dairy products.

Food Products: Syrups, sauces, liquid eggs, and edible oils.

• One year warranty

• Hassle-free installation

• Free online training operation

• Every product will be tested before the delivery

>> FAQ

Q：What products is this BIB Aseptic Filler usually used for filling?

A：It is mainly used for oil/water/milk/coffee liquid/juice/wine/beer.etc.

Q：What kind of packaging form does the aseptic filling machine pack for the product?

A：Mainly bag-in-box of 5L-30L.

Q：What are the advantages of an aseptic filling machine?

A：Easy to transport and reduce storage costs.
